CARPATHATV300 4WD
For a day with a few things to bring, the model sheet lists 30 / 45 kg front and rear rack limits. Start with the journey, then check every detail.
Get to know this CarpathTalk to our team
GALLERY01 / 03
FROM THE MODEL TO YOUR DAY
A good day begins with the right details.
Choose the place, then the route.
Plan a route where the vehicle is permitted and suitable for the conditions. The destination can be shared even if everyone arrives in their own way.
Bring what matters.
Compare the model dimensions, maximum load and listed rack limits with what you intend to bring and how you will transport it.
Make room for questions.
Confirm approved seating, passenger requirements and service options for your area before you set off.

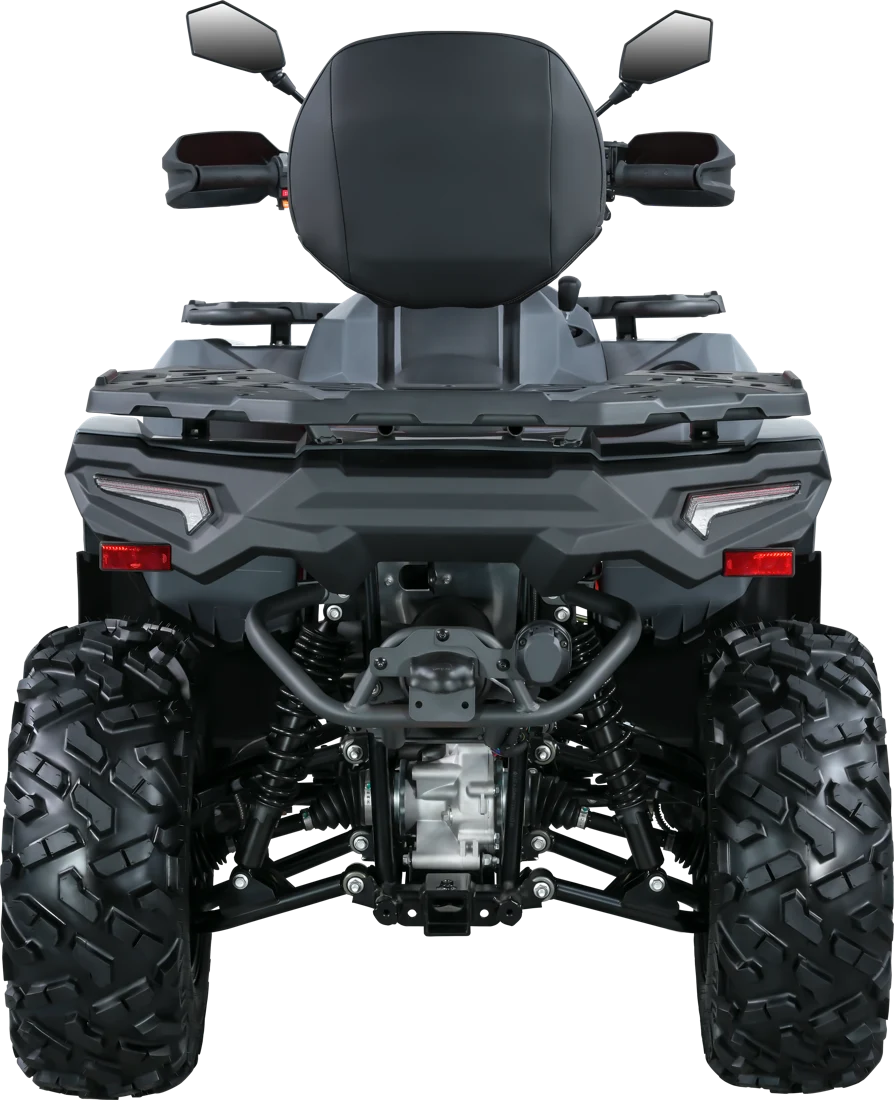

CARPATH ATV300 4WD
The details behind the day.
Compare dimensions, equipment and loads with your plans. Our team can help you confirm the configuration for your market.
Powertrain
Engine typeSingle Cylinder,4-Stroke
Displacement (cc)287.2
Fuel systemEFI
Maximum power17kW/6800rpm
Maximum torque28N.m/5500rpm
CoolingLiquid Cooled
StartingElectric
TransmissionCVT,L-H-N-R
Chassis
SuspensionDouble A-Arm Independent
Suspension travel65mm/75mm
Front tyresSteel Wheel 25x8-12
Rear tyresSteel Wheel 25x10-12
Shock absorbersPreloaded, Oil Damped
Dimensions & equipment
Dimensions2129×1122×1170mm
Wheelbase1340mm
Ground clearance300mm

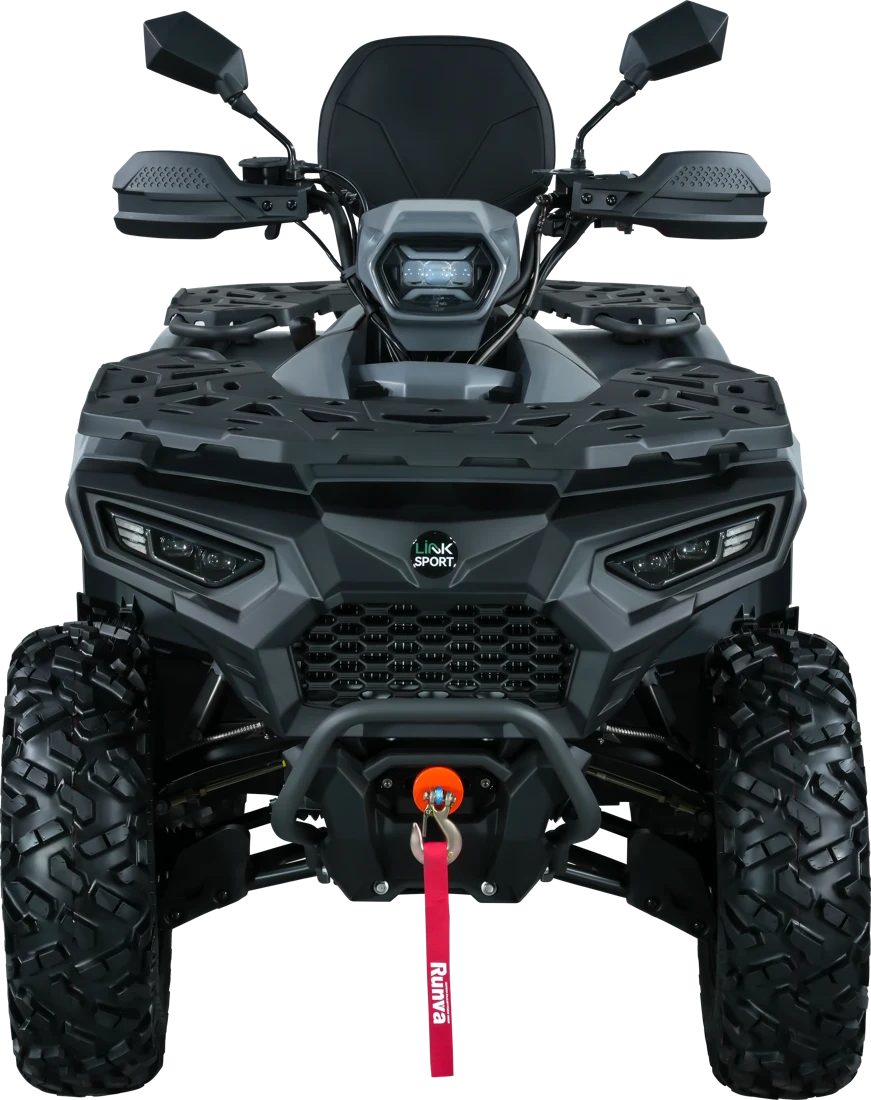

Winch2000LBS
Rack loadsF:30kgs/R:45kgs
Battery12V12AH
Fuel tank14L
Curb weight305kg
Maximum load155kg
